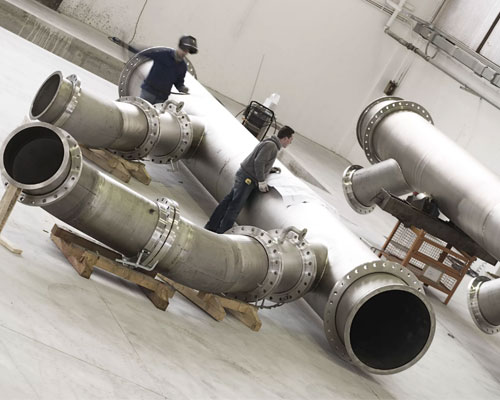

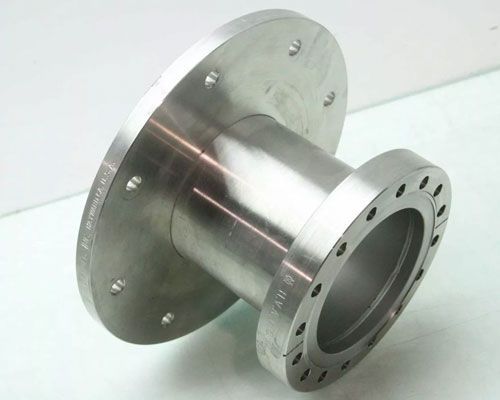

Spool Flange

Pipe Spool Flange Standard Specifications :

Flange Standards/Dimensions : ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605

Flange Face Types/Connection Type : Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G)

Material Test Certificates (MTC) : As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

Test Certificates : 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc

Tests : Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector

Equipment/Machines : Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc.

Details :

• Pipe Spool Flange Material Grades
• Pipe Spool Flange Standards
• Pipe Spool Flange Dimensions
• Pipe Spool Sizes and Lengths
• Pipe Spool Flange Industries and Applications
• Spool Flange Supply and Export Network
• Pipe Spool Flange Price and Other Flange Types
